模板组合

Name: 模板组合
Brand: Lary
SKU: 18497056
Rating: 4.75 (10 reviews)

Model: LRS165

Item specifics

Condition: New

Place of Origin: Zhejiang, China (Mainland)

Oil tank capacity: 400 L

Max Injection Volume: 850 ml

Heating Plate Dimension: 460X340 mm

System pressure: 21 Mpa

Total Power: 55 kw

Dimension (L×W×H): 3680X2020X(2750~3250)) mm

Weight: 9.5 Ton

Engineers: Portugal team

Review

Description

Description

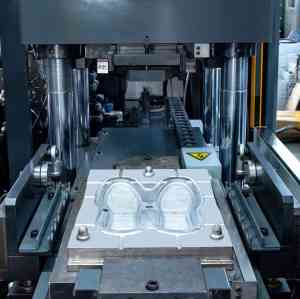

Rubber shoe soles making machine

The rubber sole injection molding machine from LARY is suitable for producing various rubber products, including shoe soles, seals, and rubber tubes. Through its unique molding process, LARY enables the efficient production of complex-shaped rubber products, enhancing both product quality and production efficiency.

ADVANTAGES

High Automation: Minimizes manual intervention, improving efficiency.

Material Savings: Directly processes strip-shaped rubber from open milling, reducing waste from edge trimming in traditional processes.

Time Efficiency: Enables continuous production cycles, reducing overall production time.

Complex Shape Molding: Supports hollow molding, minimizing trimming steps and simplifying post-processing.

Prevents Color Bleeding: Ensures better product appearance and consistency.

Streamlined Process: Simplifies manufacturing steps for greater efficiency.

Reduced Mold Wear: High production efficiency lowers the need for additional molds, cutting costs.

Improved Product Quality: Reduces defect rates and enhances overall product consistency.

Energy Efficiency: Optimized design reduces power consumption.

PARAMETERS

NO.	ITEM	PARAMETERS
1	No. of working stations工作站	2
2	Clamping force（KN）锁模力	1650
3	Clamping Stroke（mm）合模行程	300
4	Space between heating plate（mm）加热板空间范围	230～480
5	Heating Plate Size（L×W mm）加热板尺寸	460×340
6	Power of heating plate（KW）加热板功率	12×2
7	Mould size（L×W mm）模具尺寸	(400～460) ×(300～360)
8	Mould thickness（mm）模具厚度	80～440
9	Screw Diameter（mm）螺杆直径	45
10	Injection barrel diameter（mm）注射筒直径	65
11	Injection pressure（MPa）最大注射压力	210
12	Injection volume（ml）最大注射量	850
13	The injection stroke（mm）注射冲程	320
14	Heating power of Mold Temperature Controllers（KW）模温机的加热功率	5.5×2
15	Oil tank capacity of Mold Temperature Controllers（L）模温机的油箱温度	48 (12×4)
16	Max. feeding rubber strip width（mm）喂料胶条宽度	45
17	Max. feeding rubber strip thickness（mm）喂料胶条厚度	8
18	System pressure（MPa）系统压力	21
19	Motor power of oil pump（KW）油泵电机功率(千瓦)	16
20	Oil tank capacity（L）油箱容量	400
21	Total power（KW）总功率	55
22	Machine dimensions（L×W×H mm）机器尺寸	3680×2020×(2750~3250)
23	Machine weight（KG）机器重量	9500

DETAILS

Material Savings & Process Optimization

Traditional compression molding requires pre-forming the rubber compound, generating significant edge trim waste and inefficiencies in recycling.

LARY' s rubber injection molding machine eliminates the need for pre-forming, reducing this type of waste. Additionally, its high-precision injection minimizes flash and material loss within the mold, further optimizing resource utilization.

Increased Production Capacity

During the production of a single mold sole, the feeding system pre-measures and feeds the rubber for the next mold, preheating it by mixing and plasticizing it again in the screw. Once in the barrel, the rubber is heated to 70–80°C for softening, reducing the vulcanization time in the mold by at least 40% and significantly boosting production efficiency.

Eliminating Color Bleeding in Multi-Color Soles

LARY' s advanced injection system, utilizing a middle plate production process, significantly reduces color bleeding and cross-contamination. With high and uniform injection pressure, along with secondary mixing inside the screw, the machine ensures optimal rubber blending while preserving its physical properties to the greatest extent.
